Description
Class A EN161 & DIN3391 to 3394, normally closed.
Thread Size: 1” BSP. Max pressure: 360mbar. Supply (-15to+10%): 230Vac 50/60Hz 25VA IP54.
Overall Dimensions: A: 100 mm. B: 156 mm. C: 75 mm. D: 96 mm
Weight: 2.20 Kg.

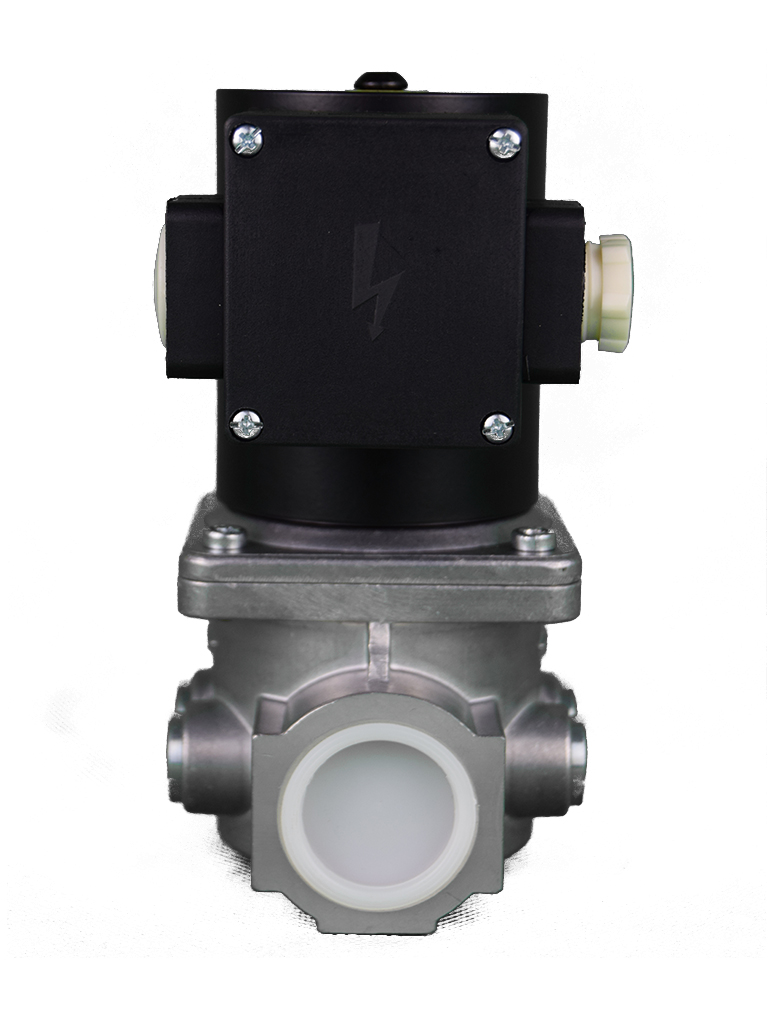

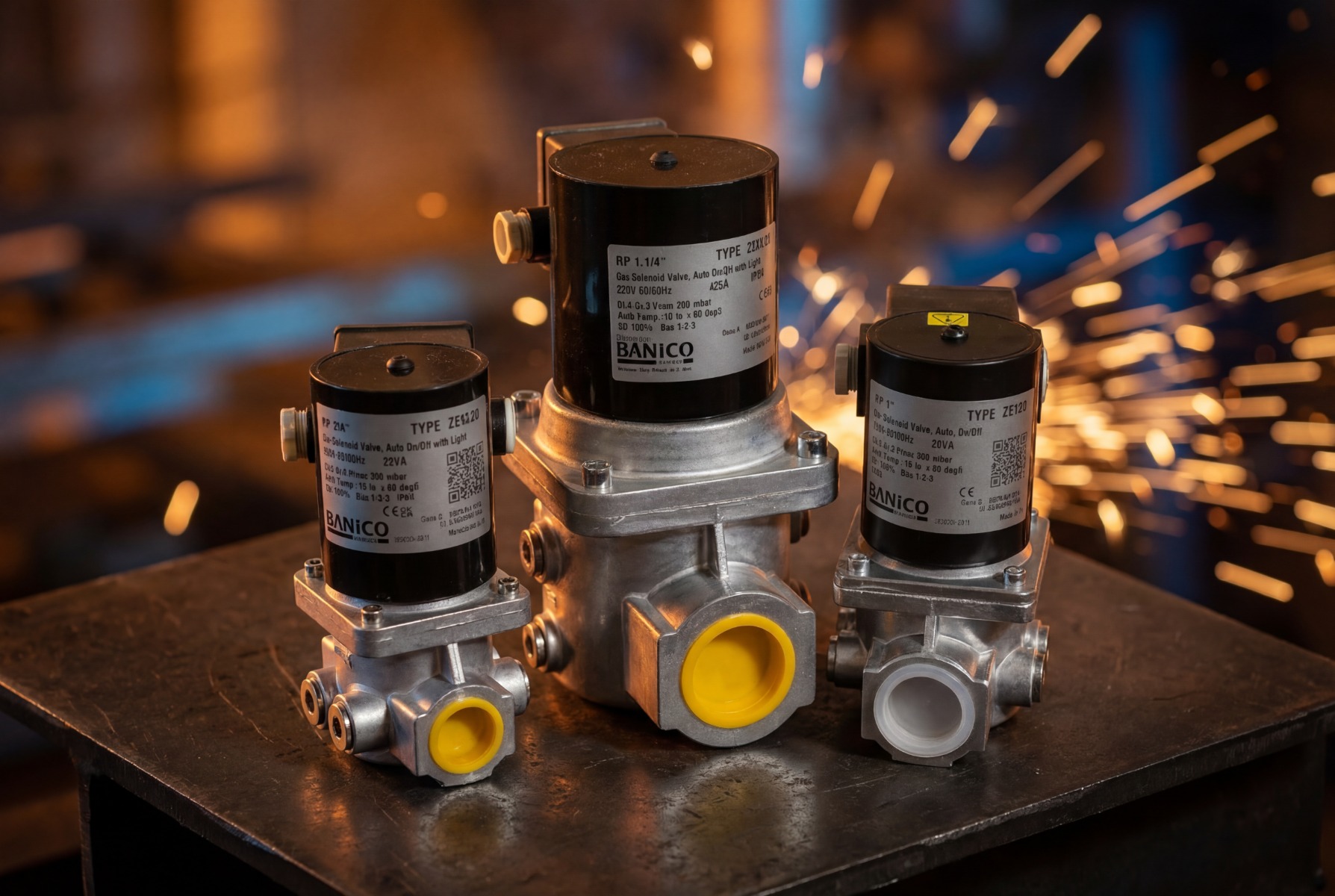

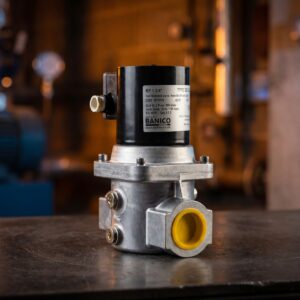

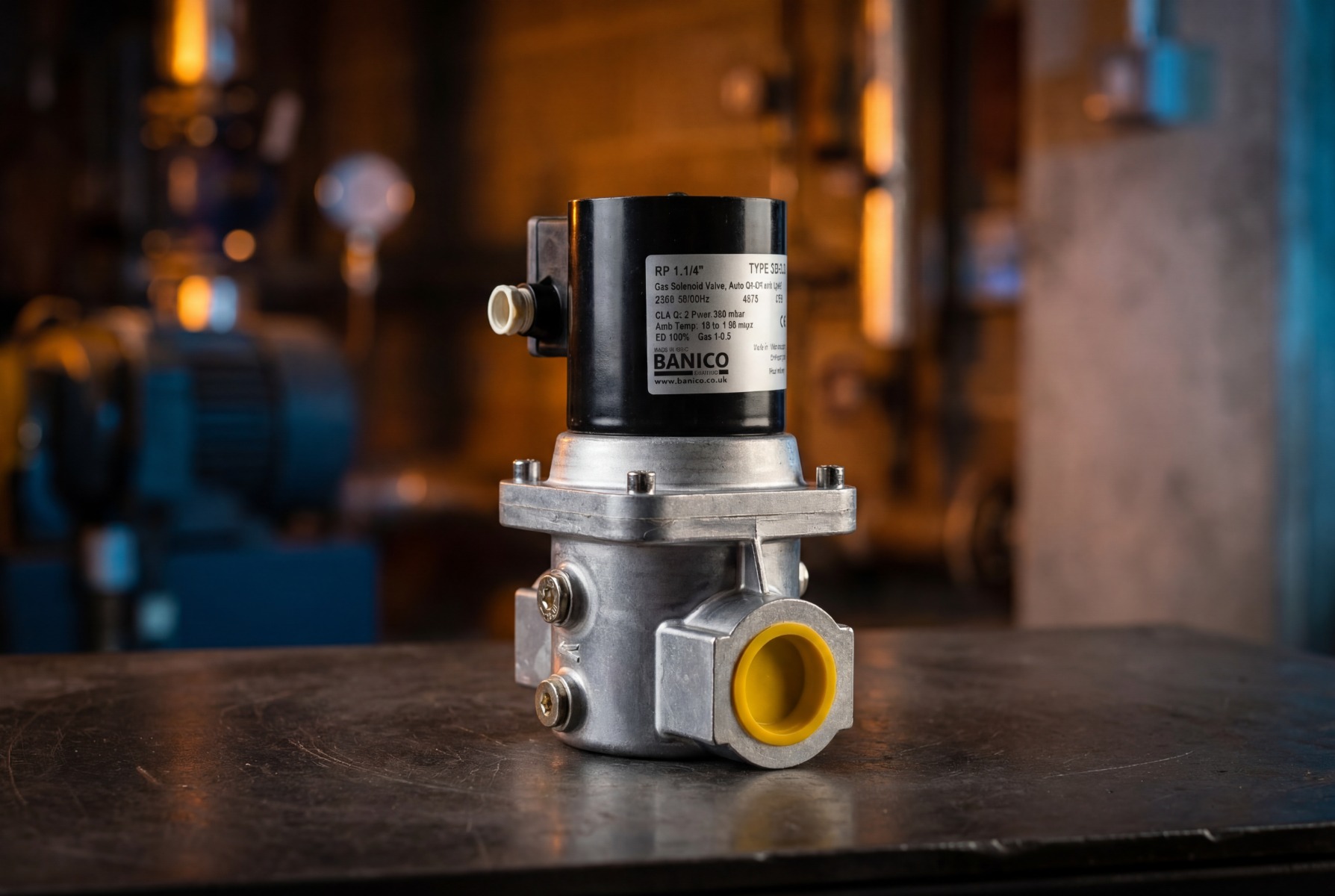

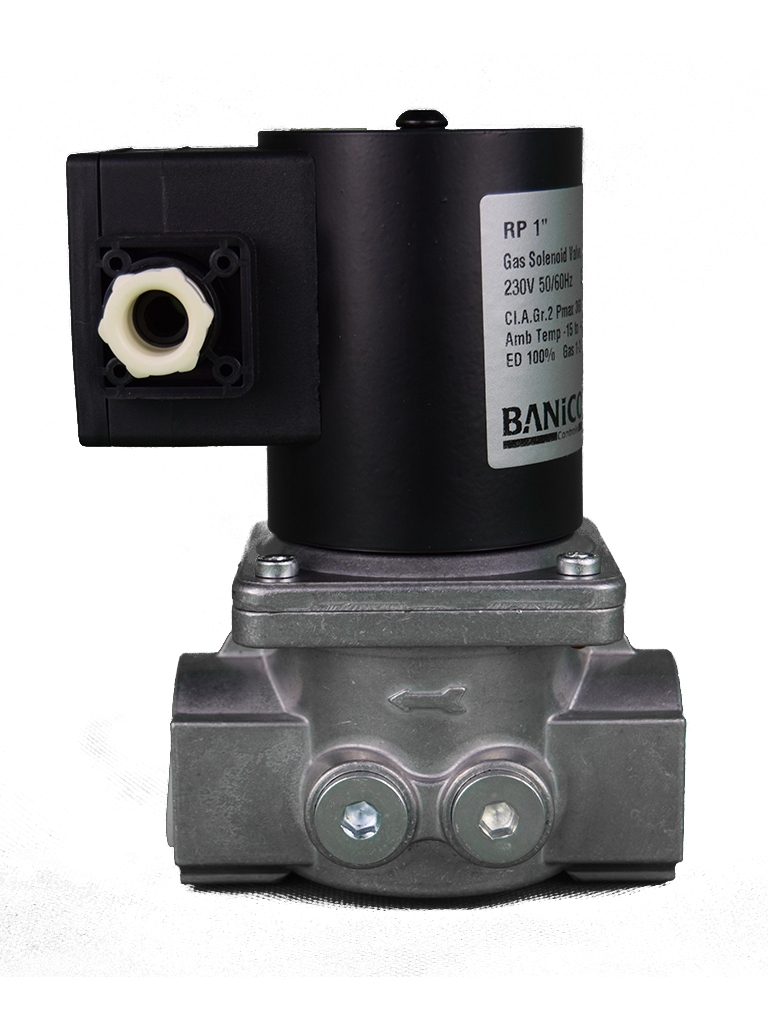

ZEV.. Class A Gas Solenoid Valves are suitable for Gas Interlock Systems, Air blocking and adjusting, control and regulation in Gas Power Burners, Atmospheric Gas Boilers, Industrial Ovens and other gas consuming appliances.
We also supply:-
The Gas Minder Kit; a Sensor that must detect an air flow above a certain threshold, before the sensor will allow the gas isolation valve to open. If the air is not flowing, the Gas Solenoid Valve will not open.
This is a mandatory requirement for the safety of any Commercial Kitchen since 2004 (BS 6173:2001). A Gas Solenoid Valve is a system that will not allow the gas to be turned on until the ventilation system is on and functioning correctly. The HSE also strongly monitor this as a mandatory piece of safety for all your staff.
Available Sizes
½” – ZEV15
¾” – ZEV20
1” – ZEV25
1 ¼” – ZEV32
1 ½” – ZEV40
2” – ZEV50
