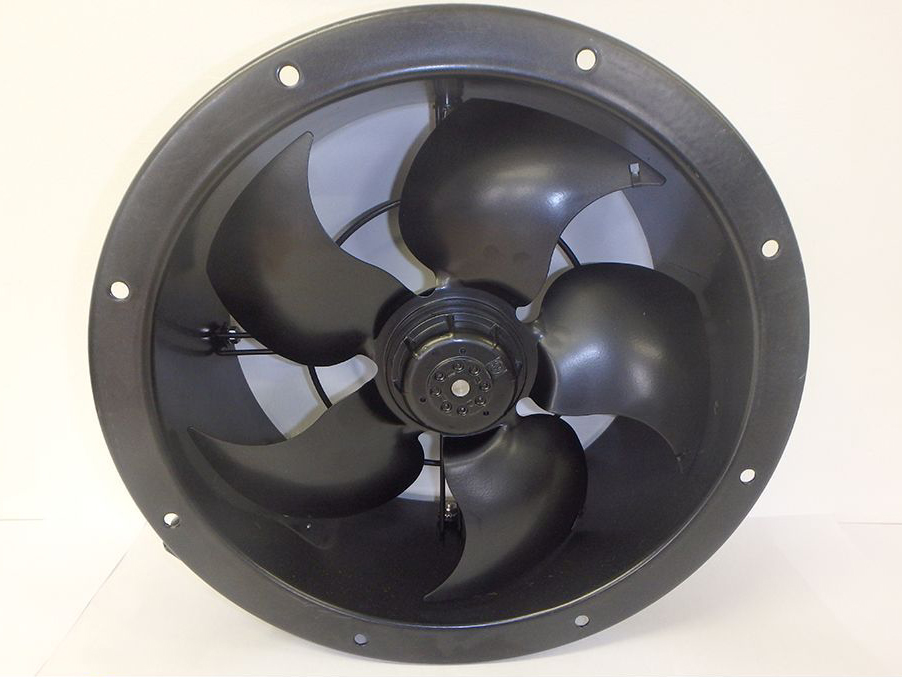

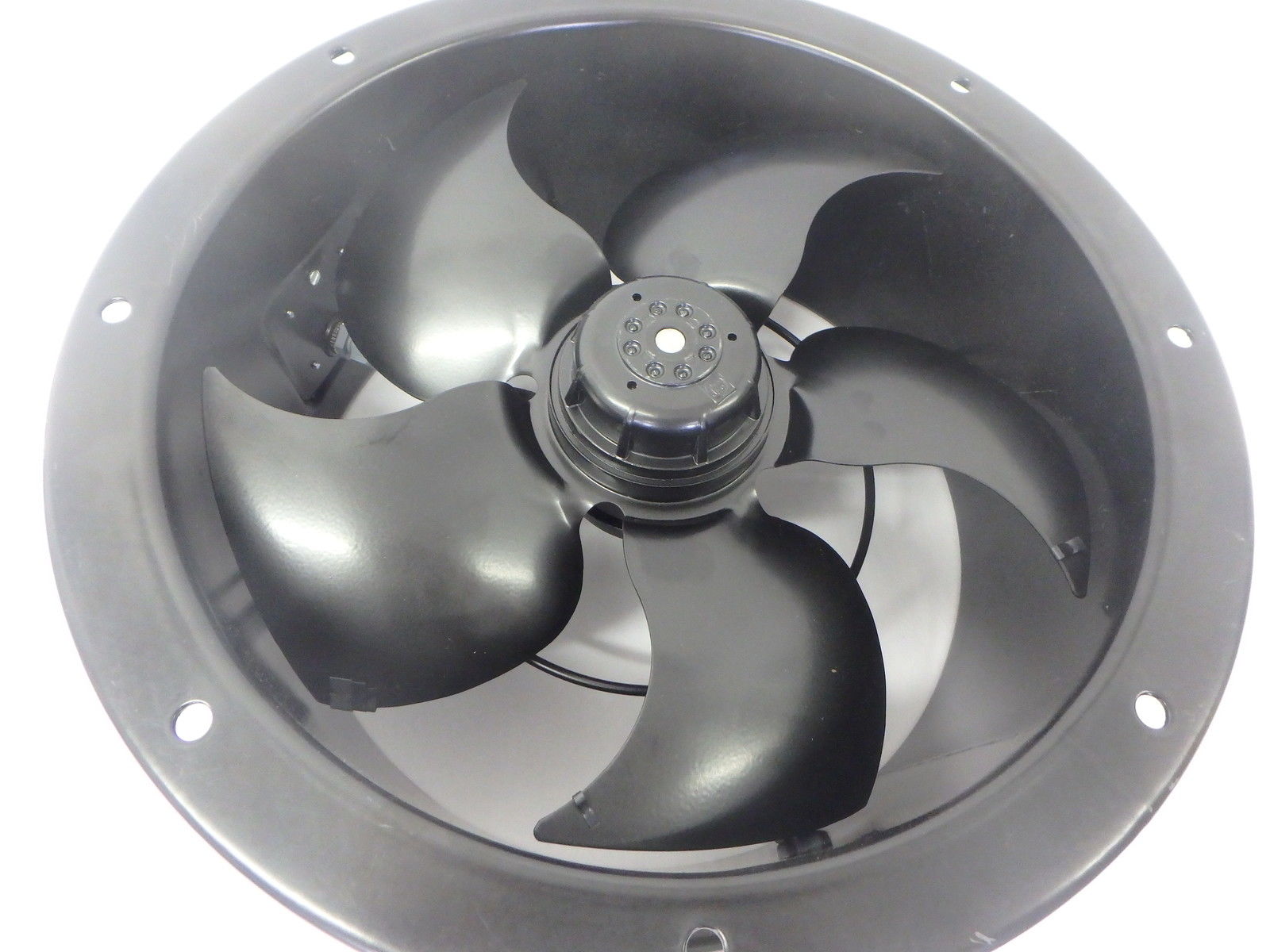

Description
- 230/240v 50Hz Single Phase 4 Pole
- Genuine S & P Fan With 12 Month Manufacturers warranty
- Suitable for Extraction of a Canopy or Can Be Used For Air Intake
- Manufactured from High Grade rolled galvanised steel with black polyester finish
- Supplied with a pre-wired, wiring junction box located on outside of fan case for easy wiring, Cable Gland PG-11
- Dynamically Balanced Impeller to ISO 1940 Standard
- Speed Controllable
- Corrosion Resistant
- IP44 Rated Class F Thermal Protection
- Working Temperature -40 c to +70 c
- *Please note the manufacturer of these fans are now in transition of changing the impeller blades from red to black.
Optional speed controller available: REB-1
Available Sizes (WxDxH)
- 250mm⌀ – TCBB/4-250/H
- 315mm⌀ – TCBB/4-315/H
- 355mm⌀ – TCBB/4-355/H
- 400mm⌀ – TCBB/4-400/H
- 450mm⌀ – TCBB/4-450/H
- 500mm⌀ – TCBB/4-500/H
- 560mm⌀ – TCBB/4-560/H
- 630mm⌀ – TCBB/4-630/H
